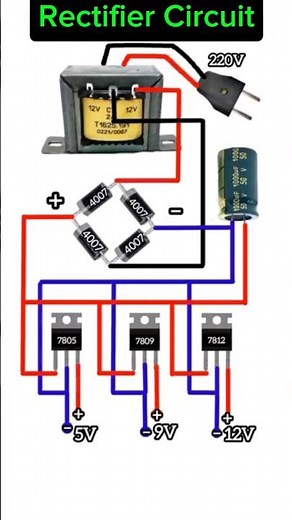

This simulation illustrates the working of a Full Wave Rectifier circuit using a center-tapped transformer and two diodes. The waveform at the top shows how both halves of the AC input are converted into positive pulses at the output, effectively doubling the frequency of the ripple. The circuit ensures that during both positive and negative cycles of the AC input, current flows through the load in the same direction, providing full-wave rectification. #ElectronicsEducation #electronicsrd #recti

This simulation compares three half-wave rectifier circuits. The first one uses only a diode and a 100 kΩ load, so the output is just positive pulses that follow the AC peaks. The second circuit adds a 100 nF capacitor across the load. Because the value is small, the capacitor charges at each peak but discharges quickly, creating a large ripple with a slowly falling exponential shape. The third circuit uses a 100 µF capacitor, which stores much more charge. It holds the peak voltage for a longer

This is a 3-phase full-wave rectifier circuit that converts three-phase AC into DC using six diodes arranged in a bridge configuration. Each phase contributes to the output during different parts of the cycle, resulting in a smoother DC with less ripple compared to single-phase rectification. With a suitable filter it can be used for high-power DC applications. #ElectronicsEducation #electronicsrd #rectifier | Electronics Education
